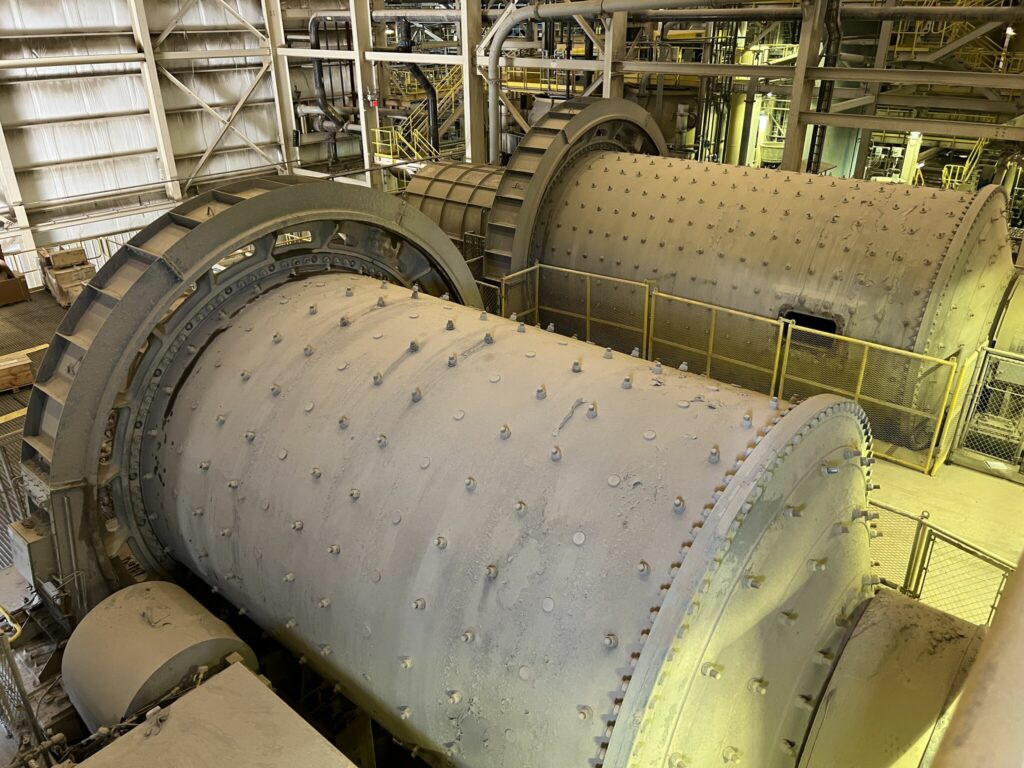

(2) UNUSED METSO 12' x 24' (3.7m x 7.3m) Ball Mills 1,800HP (1,342kW) Motors EachUSA
(2) UNUSED METSO 12' x 24' Ball mills, S/N 69996 & 69997, each with 1800 HP motor. Units are complete including new Metso rubber liner system, Trommels, Inching drive, Clutch, Lube System. Mills were purchased in 2008 but never installed.
- MILL SIZE: 12’-0” x 24’-0”
- TYPE: Horizontal Ball Mill
- EQUIPMENT TAG # Ball Mill A: 0LS5506SA (69996) Ball Mill B: 0LS5506SB (69997)
- DRIVE ARRANGEMENT:
- DRIVE MOTOR: ABB, Type AMA 450L6W BSH
- POWER: 1800 HP, 4000V, 1192 RPM, 3 ph, 60 Hz,
- CLUTCH: Eaton 38VC1200 Dual Wide
- SPEED REDUCER: Moventas D1PSF110 Speed Reducer Ratio: 6.11 : 1
- INCHING DRIVE: Moventas 4C225N Inching Drive, with Brake, Connected to the Extended Motor Shaft
- GEAR SET INFORMATION: Teeth: 262 (Gear), 23 (Pinion) Ratio: 11.39 : 1
- DP: 1.25 CENTERS: 114.984”
- MILL SPEED: 17.1 RPM % CRITICAL SPEED: 75 %
- TRUNNION BEARINGS SIZE: 54” x 16” TYPE: Hydrodynamic Sleeve Bearings
- TRUNNION BEARING LUBE SYSTEM: 650AL-Duplex Lubrication System
- MILL LINING: Rubber Liner Assembly
- FEED ARRANGEMENT: Lined Spout Feeder with Seal Assembly
- DISCHARGE ARRGT: Discharge Trunnion Liner, Trommel, and Discharge Housing
- GRINDING MEDIA: Steel Grinding Balls (NOT included)
Additional Circuit Equipment Available At Additional Cost, including:
- Slurry Tanks
- Slurry Pumps
View More Information...
10,000 TPD Processing Mill Plant Canada
Used 10,000 TPD Gold Processing Mill Plant With SAG Mill, Ball Mills, Gyratory, 7' HD Cone, Rock Breaker & Supporting Equipment
10,000 TPD Gold Processing Mill Plant consisting of:
(1) Hardinge Koppers SAG Mill - 32' x 12' w/ 6800 HP
(2) Allis Chalmers Ball Mill - 14.5' x 28' w/ 3000 HP
(1) Allis Chalmers Gyratory Crusher - 54" x 74" w/ 1000 HP
(1) Symons SH HD Cone Crusher 7' w/ 400 HP
(1) Teledyne TM25HD TB CANADA Rock Breaker
(1) Mclellan Liner Handler
Derrick Carbon/ Primary/ Trash/ Dewatering Screens
Allis Chalmers & GIW SRL Pumps
Hayward Gordon Gear Reducers, Mixers, CIL Tanks
Thickeners, Flotation Cells, Leach Tanks
Carbon Kiln, Heater Fan, Air Compressors, Rotary Blowers
- Stored & Ready To Ship -
